ISUZU C&E SERIES TRUCKS

Built to Move

ISUZU C&E SERIES TRUCK MODELS

NEW EXR77 H Tractor Head



NEW EXR77 H Tractor Head

GCM 45,000 kg
GVW 18,000 kg (Tractor only)
Engine 6UZ1-TCG50
Max. Output 279 KW (380 PS )/ 2,000 rpm
Max. Torque 1,765 N-m ( 180.0 kg-m )/1,200 – 1,500
NEW EXZ77 N Tractor Head



NEW EXZ77 N Tractor Head

GCM 60,000 kg
GVW 24,900 kg (Tractor only)
Engine 6UZ1-TCG50
Max. Output 279 KW (380 PS )/ 2,000 rpm
Max. Torque 1,765 N-m ( 180.0 kg-m )/1,200 – 1,500
NEW EXZ52 N Tractor Head



NEW EXZ52 N Tractor Head

GCM 60,000 kg
GVW 25,000 kg (Tractor Head only)
Engine 6WG1-TCG51
Max. Output 338 KW (460 PS )/ 1,800 rpm
Max. Torque 2,060 N-m (210.0 kg-m) / 830 - 1,400 rpm

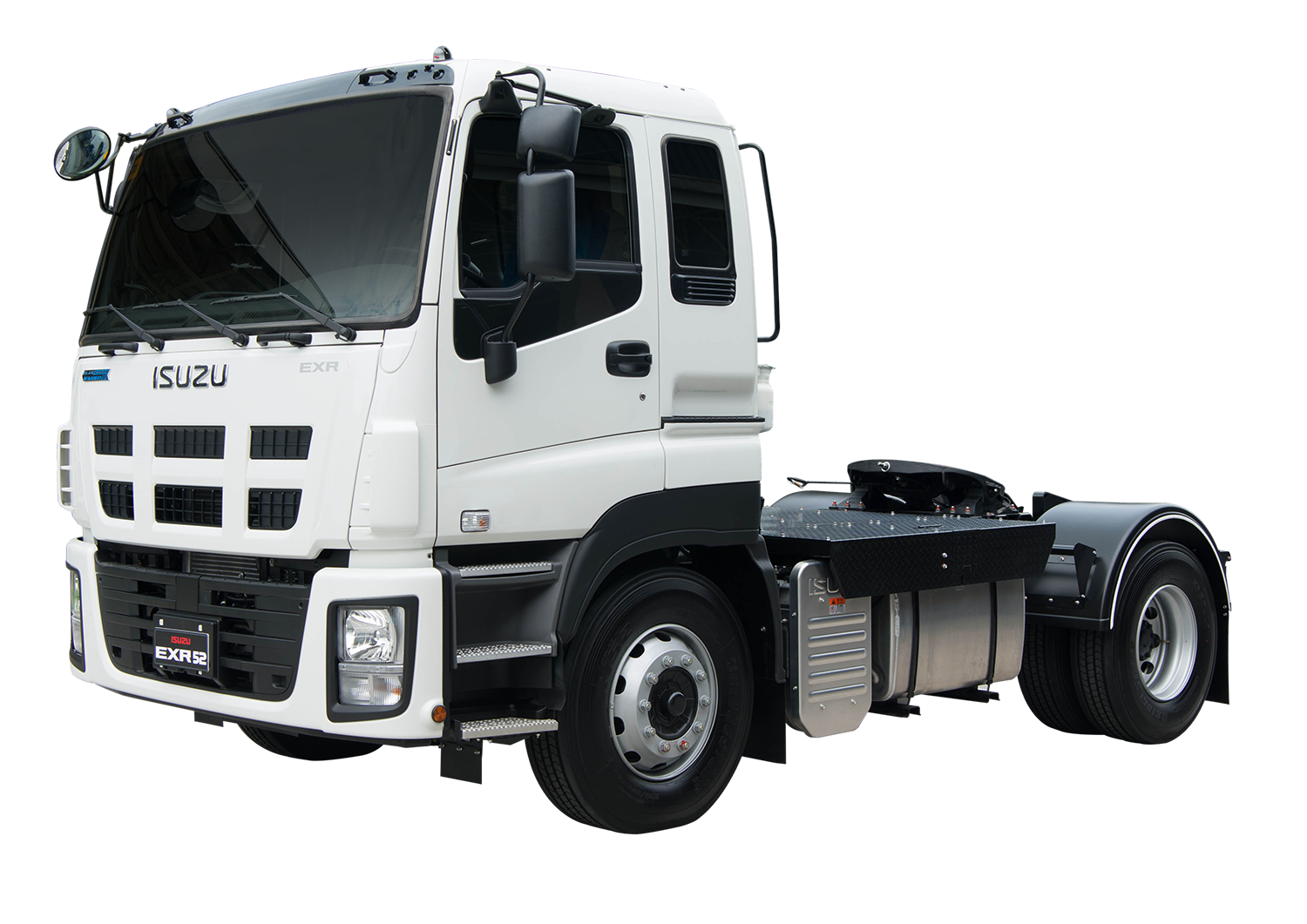

EXR52 F Tractor Head



EXR52 F Tractor Head

GCM 45,000 kg
GVW 20,000 kg (Tractor)
Engine 6WG1-TCN
Max. Output 309 KW (420.0 PS) / 1,800 rpm
Max. Torque 1,863 N-m (190.0 kg-m) / 1,300 rpm
EXZ52 K Tractor Head



EXZ52 K Tractor Head

GCM 60,000 kg
GVW 33,000 kg (Tractor)
Engine 6WG1-TCN
Max. Output 309 KW (420.0 PS) / 1,800 rpm
Max. Torque 1,863 N-m (190.0 kg-m) / 1,300 rpm
CYZ52 Rigid Truck



CYZ52 Rigid Truck

GVW 33,000 kg
Engine 6WG1-TCN
Max. Output 309 KW (420 PS) / 1,800 rpm
Max. Torque 1,863 N-m (190.0 kg-m) / 1,300 rpm
CYH52 Rigid Truck



CYH52 Rigid Truck

GVW 41,000 kg
Engine 6WG1-TCN
Max. Output 309 KW (420 PS) / 1,800 rpm
Max. Torque 1,863 N-m (190.0 kg-m) / 1,300 rpm

Ask for a Quotation

Digital Dealer

*Prices / Specifications may change without prior notice.

*Shipping and handling charges not included (provincial dealerships).

*Photo and Specifications may vary from actual unit.

*SRP does not include rear truck body.

*Prices of trucks are for cab and chassis only.

*Warranty coverage for C&E SERIES is 12 months or 40,000 kilometers, whichever comes first.

Isuzu C&E Series Highlights

ISUZU C&E SERIES FEATURES

EURO V COMPLIANT BLUE POWER DIESEL ENGINE

ANTI-LOCK BRAKING SYSTEM

REINFORCED CHASSIS FRAME

EASY COUPLER ATTACHMENT

ELECTRONIC TILTING CAB

QUICK ACCESS FRONT PANEL

TILT AND TELESCOPING POWER STEERING

EASY INGRESS AND EGRESS

SPECIFICATIONS
WEIGHT
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Gross Vehicle Weight (kg) 33,000 41,000 20,000 (Tractor) 33,000 (Tractor) 18,000 (Tractor only) 24,900 (Tractor only) 25,000 (Tractor Only)
Gross Combination Mass (kg) - 45,000 60,000 45,000 60,000
ENGINE
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Model 6WG1-TCN 6UZ1-TCG50 6WG1-TCG51
Type 6 Cylinder, 4 Cycle, Direct-Injection, Water-Cooled, In-Line Overhead Camshaft (OHC), VGS Turbocharger, Blue Power Diesel Engine 6 Cylinder, In-Line Blue Power Diesel Engine with Intercooler Euro V Engine
Bore and Stroke (mm) 147 x 154 147 x 154 120 x 145 147 x 154
Displacement (cc) 15,681 15,681 9,839 15,681
Max. Output KW (PS)/rpm 309 (420) / 1,800 309 (420) / 1,800 279 (380) / 2,000 338 (460) / 1,800
Max. Torque N-m (kg-m)/rpm 1,863 (190) / 1,300 1,863 (190) / 1,300 1,765 (180) / 1,200 - 1,500 2,060 (210) / 830 - 1,400
Fuel Tank Capacity 200 400 200 400 400 600
TRANSMISSION
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Model MJT7S (7-Speed) MJX16P (16-Speed) MJT7S (7-Speed) MJT7A (7-Speed) MJX16P (16-Speed) ZF16 Speed
Model (Option) MJX16P (16-Speed) MJT7S (7-Speed) MJX16P (16-Speed) N/A
Final Gear Ratio - 5.125 4.100 3.909 4.555 3.909
TIRE AND WHEEL
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Tire 11.00R-20-16PR 295/80R22.5 11.00R20-16PR 295/80R22.5 295/80R22.5
BRAKE
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Service Full Air; Auto Adjust Full Air
Auxiliary Exhaust Brake with Service Brake Trailer Hand Break
Parking Wheel Park
SUSPENSION
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Front Taper Leaf / Multi Leaf * (* Dump Usage units is equipped with Multi Leaf Suspension) Taper Leaf
Rear Taper Leaf / Multi Leaf * (* Dump Usage units is equipped with Multi Leaf Suspension) Taper Leaf
ELECTRICAL SYSTEM
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
BATTERY 115F51 X 2 115F51R X 2
SAFETY
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Anti-Lock Braking System (ABS) Equipped
CONVENIENCE
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Cab Window Power Window
Cab Door Auto Door Lock
Air Conditioning System Equipped
Radio with Speakers Equipped
CAB AND CHASSIS DIMENSIONS (mm)
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
WB 5,225 5,550 5,935 6,665 6,500 7,410 3,600 4,685 3,450 4,755
OAL 8,140 8,315 9,775 11,250 9,315 10,780 5,970 6,745 5,790 6,895
FOH 1,400 1,370
ROH 1,515 1,365 2,440 3,185 1,415 1,970 970 660 970 770
CE 5,985 6,160 7,620 9,095 7,165 8,625 3,903 4,678 3,528 4,633
CA 4,470 4,795 5,180 5,910 5,750 6,655 2,933 3,333 2,558 3,178
OW 2,490
AW 2,065 2,070 2,065 2,045
BW 2,480
CW 1,850 1,300
OAH 2,990 2,970 3,005 2,950 3,055
HH 250 265
EH 1,150 1,160 1,165 1,140 1,125 1,080 1,105 1,090 1,060
WEIGHTS (kg)
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Transmission MJT7S MJX16P MJT7S MJX16P MJT7S MJX16P MJT7S MJT7S MJT7S MJX16P ZF16 Speed
Usage Dumper Concrete Mixer Dumper Cargo/Tanker Cargo Cargo Dumper Cargo Semi Tractor
GVW Ratings 33,000 41,000 20,000 33,000 18,000 24,900 25,000
Cab and Chassis Mass 8,530 8,625 9,000 8,635 8,730 9,115 9,200 9,310 9,670 9,830 10,225 6,590 6,650 8,465 6,870 8,350 8,870
Front - 4,585 4,750 4,605 4,670 4,545 4,600 4,545 6,125 6,205 6,370 4,505 4,535 4,610 4,505 4,390 4,750
Rear 4,010 4,004 4,250 4,030 4,060 4,570 4,600 4,715 3,545 3,625 3,855 2,085 2,115 3,855 2,365 3,960 4,120
Payload 24,470 24,375 24,000 24,365 24,270 23,885 23,800 23,690 31,330 31,170 30,755 -
GCM - 45,000 60,000 45,000 60,000
