| TRAVIZ L | |||
|---|---|---|---|
| Model | 4JA1 Euro 4 | ||
| Type | Direct Injection Common Rail Bluepower Diesel Engine | ||
| Displacement | (cc) | 2,499 | |
| Max. Output | PS/rpm | 78/3,900 | |
| Max. Torque | N-m/rpm | 176.5/1,800 | |
| Fuel Tank Capacity | (Liter) | 50 | |
| Voltage and Alternator | 12V - 120A | ||
The Future of Public Transportation
Isuzu PUV Models
TRAVIZ PUV
| CLASS I | Side Facing Seat Configuration |
NLR77 Almazora
| CLASS II | Side Facing Seat Configuration |
| CLASS III | Front Facing Seat Configuration |

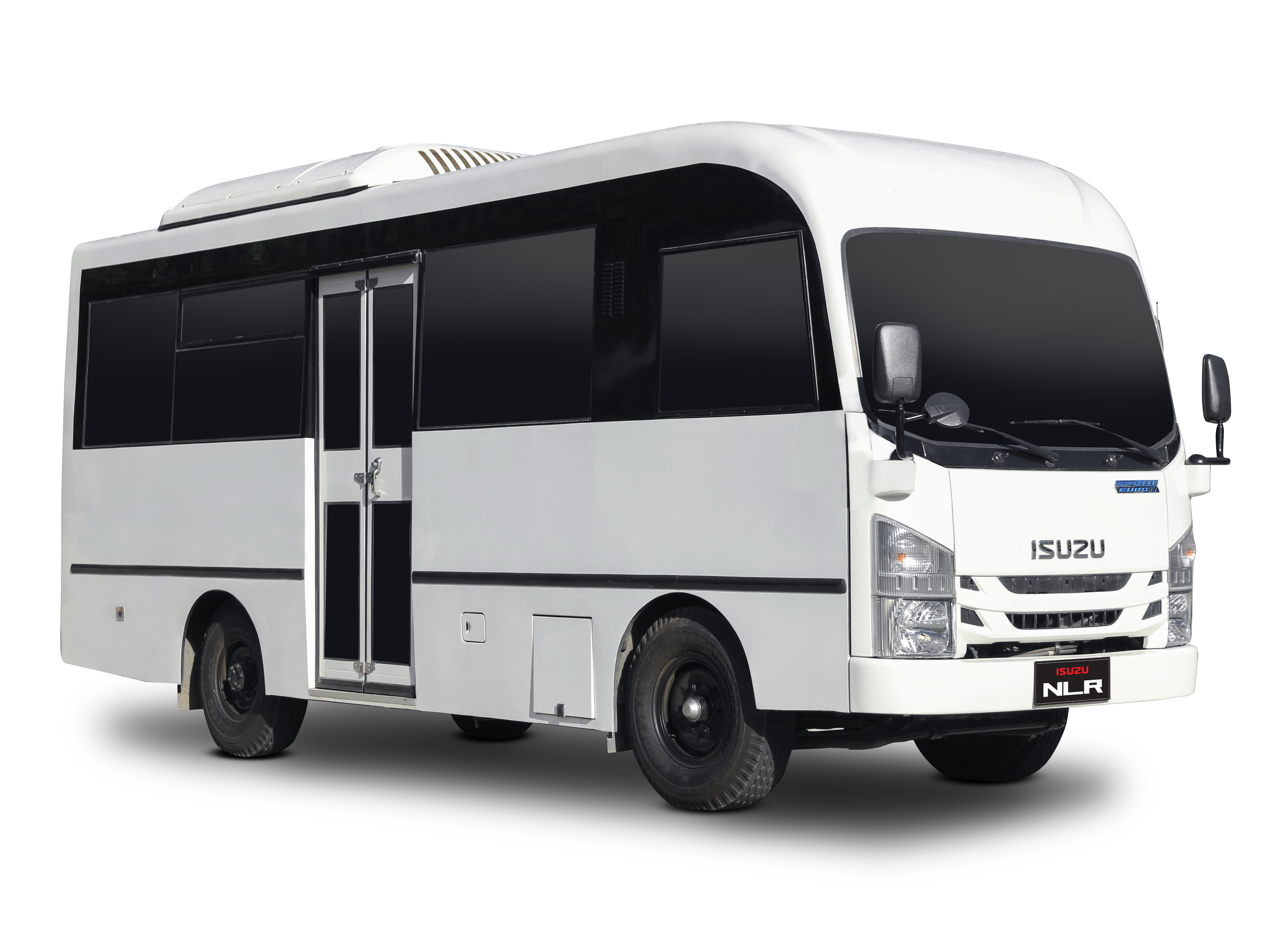

NLR77 Centro
| CLASS II | Side Facing Seat Configuration |
NLR77 Del Monte
| CLASS III | Front Facing Seat Configuration |
*Prices / Specifications may change without prior notice.
*Shipping and handling charges not included (provincial dealerships).
*Photo and Specifications may vary from actual unit.
*SRP does not include rear truck body.
*Prices of trucks are for cab and chassis only.
*For N-SERIES used as Public Utility Vehicle (PUV), the warranty shall be 36 months or 150,000 kilometers, whichever comes first.
TRAVIZ PUV FEATURES
SPACIOUS PASSENGER AREA
EASY INGRESS AND EGRESS
MODERN CABIN WITH PANORAMIC VIEW
AIRCONDITIONED CAB WITH USB-READY TUNER RADIO
SPECIFICATIONS
ENGINE
TRANSMISSION
| TRAVIZ L | |||
|---|---|---|---|
| Model and Type | MUA-5S Speed Manual |
SUSPENSION
| TRAVIZ L | |||
|---|---|---|---|
| Front and Rear | Double Wishbone with Coil Spring (FRT), Semi-Elliptical Leaf Spring (RR) |
BRAKES
| TRAVIZ L | |||
|---|---|---|---|
| Front and Rear | Ventilated Disc (FRT), Drum Leading and Trailing (RR) | ||
| Brake Assist | Equipped with Deceleration Sensing Proportioning Valve (DSPV) |
WHEEL AND TIRE
| TRAVIZ L | |||
|---|---|---|---|
| Wheel and Tire | 14x5.5JJ, 195R 14C 8PR |
PUV DETAILS
| TRAVIZ L | |||
|---|---|---|---|
| PUV Class | Class 1 | ||
| Seat Configuration | Side Facing | ||
| Seating Capacity | 13 + 1 |
WEIGHT AND DIMENSION
| TRAVIZ L | |||
|---|---|---|---|
| GVW | kg | 2,950 | |
| Overall Length ( OAL ) | mm | 4,500 | |
| Overall Height ( OAH ) | mm | 2,264 | |
| Overall Width ( OAW ) | mm | 1,739 | |
| Wheelbase ( WB ) | mm | 2,400 | |
| Front Overhang ( FOH ) | mm | 1,005 | |
| Rear Overhang ( ROH ) | mm | 1,245 | |
BODY CONSTRUCTION
| TRAVIZ L | |||
|---|---|---|---|
| Structural Floor & Frame | Rectangular, Square and Channel Section | ||
| Panel | Galvanneal Steel | ||
| Body Color | White |
INTERIOR DETAILS
| TRAVIZ L | |||
|---|---|---|---|
| Side Window | Fixed Window Type | ||
| Service Door | Side Entry Folding Type Manual | ||
| Seat and Material | Bench type seats w/ Backrest (Fabric-Leatherette Upholstery) | ||
| Rear Window | Fixed Type (Tempered Glass) | ||
| Main Flooring Material | Corrugated Floor Panel |
