| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | 4JH1-TC | 4JJ1-TCC | 4HK1-TCN | ||||||||||||||
| Type | 4-Cylinder, Turbo-Intercooler, Common-Rail Direct Injection Euro IV, Blue Power Diesel Engine | ||||||||||||||||
| Bore and Stroke (mm) | Ø 95.4 x 104.9 | Ø 115 x 125 | |||||||||||||||
| Displacement (cc) | 2,999 | 5,193 | |||||||||||||||
| Max. Output KW (PS)/rpm | 77 (106.0) / 3,200 | 91 (124.0) / 2,600 | 114 (155.0) / 2,600 | ||||||||||||||
| Max. Torque N-m (kg-m)/rpm | 230 (23.5) / 1,400 - 3,200 | 354 (36.0) 1,500 | 419 (42.0) / 1,600 - 2,600 | ||||||||||||||
| Fuel Tank Capacity | 75 L | 100 L | 75 L | 100 L | |||||||||||||
With You All the Way.
ISUZU N-SERIES TRUCK MODELS
QLR77E (4-wheeler)
| GVW | 4,200 kg. |
| Engine | 4JH1-TC |
| Max. Output | 77 KW (106.0 PS) / 3,200 rpm |
| Max. Torque | 230 N-m (23.5 kg-m) / 1,400 - 3,200 rpm |
| Rear Body Length | 10 ft. |
NLR85ES (4-wheeler)
| GVW | 4,490 kg. |
| Engine | 4JJ1-TCC |
| Max. Output | 91 KW (124.0 PS) / 2,600 rpm |
| Max. Torque | 354 N-m (36.0 kg-m) / 1,500 rpm |
| Rear Body Length | 10 ft. |

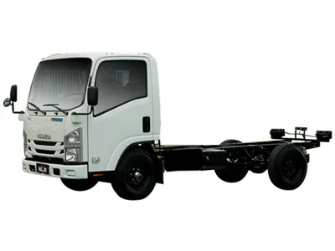

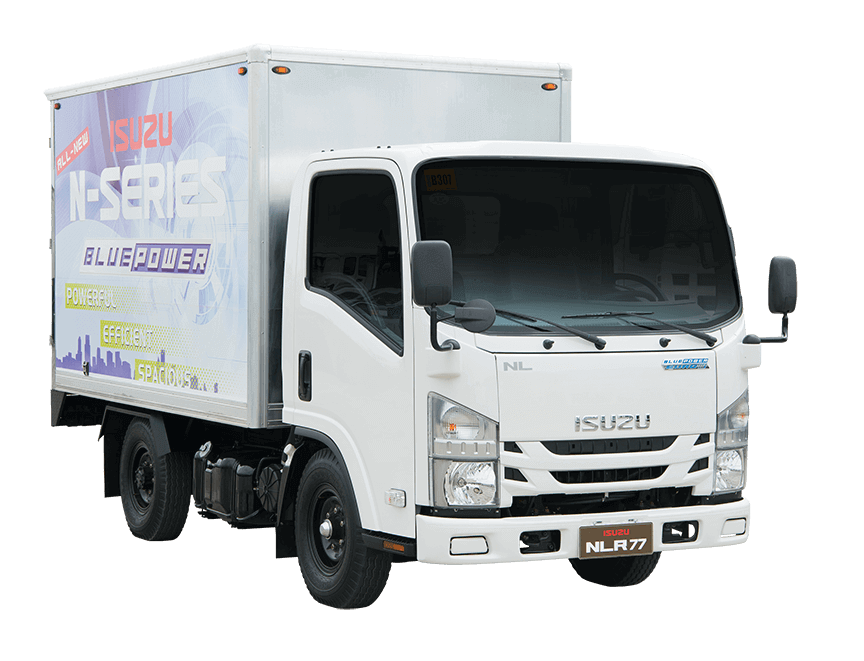

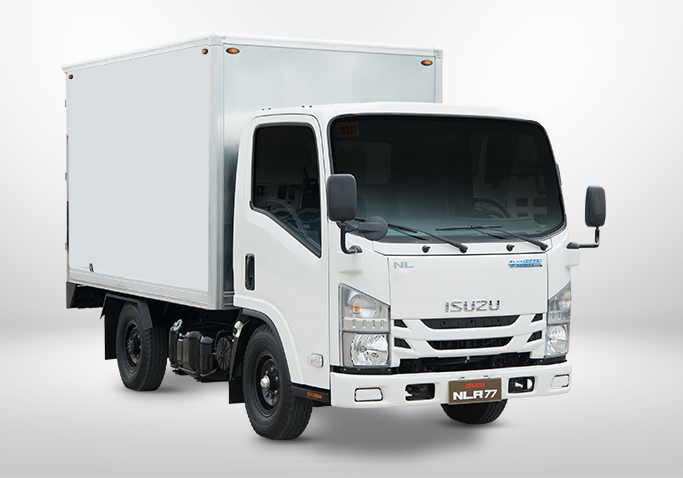

NLR77H (4-wheeler)
| GVW | 4,490 kg. |
| Engine | 4JH1-TC |
| Max. Output | 77 KW (106.0 PS) / 3,200 rpm |
| Max. Torque | 230 N-m (23.5 kg-m) / 1,400 - 3,200 rpm |
| Rear Body Length | 14 ft. |

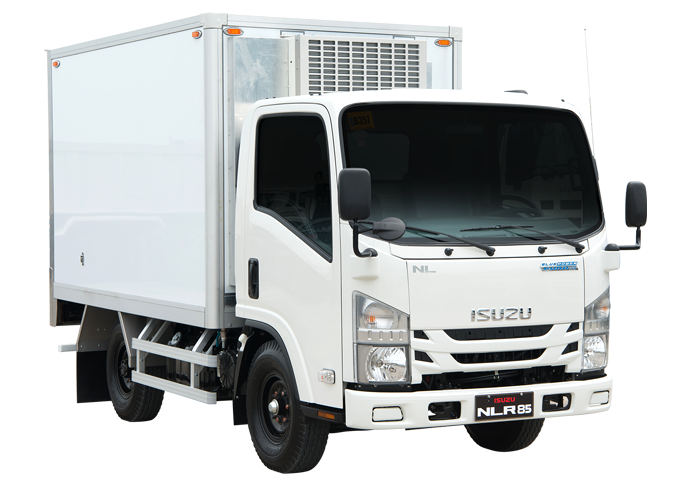

NLR85E (4-wheeler)
| GVW | 4,490 kg. |
| Engine | 4JJ1-TCC |
| Max. Output | 91 KW (124.0 PS) / 2,600 rpm |
| Max. Torque | 354 N-m (36.0 kg-m) / 1,500 rpm |
| Rear Body Length | 10 ft. |

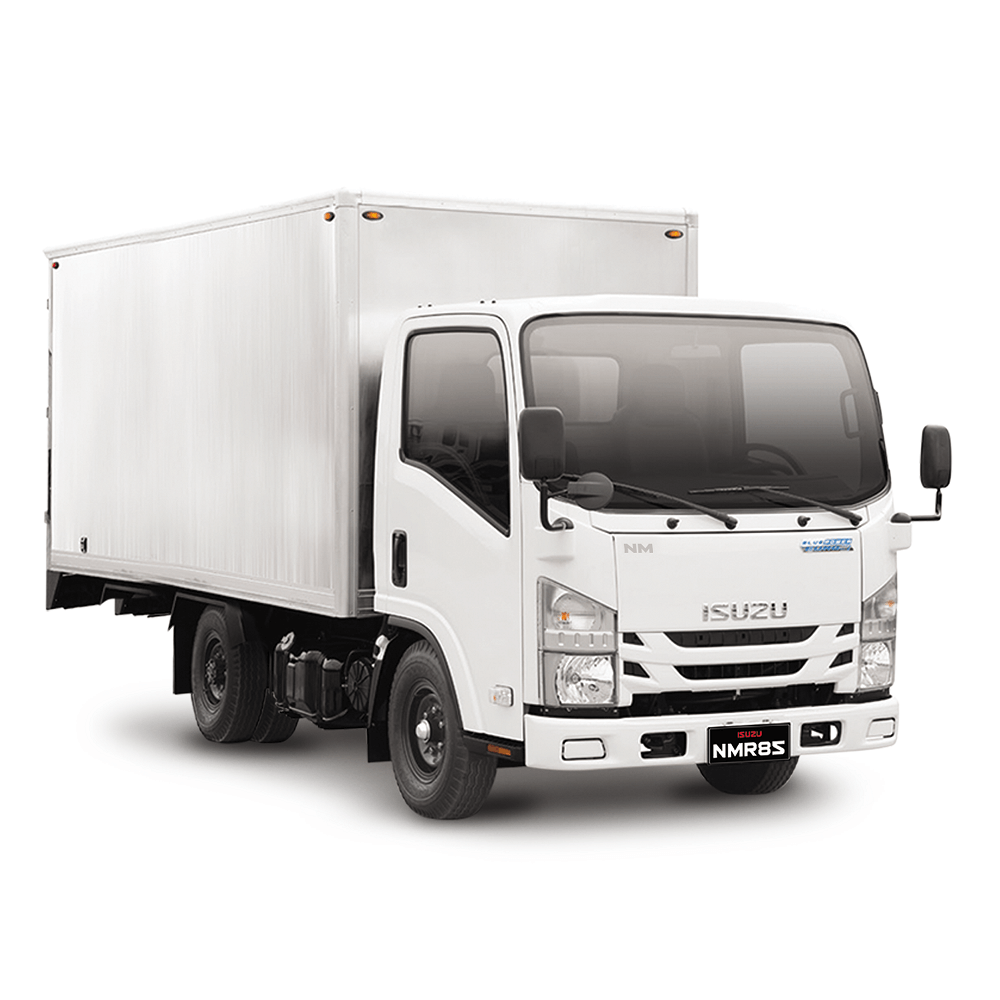

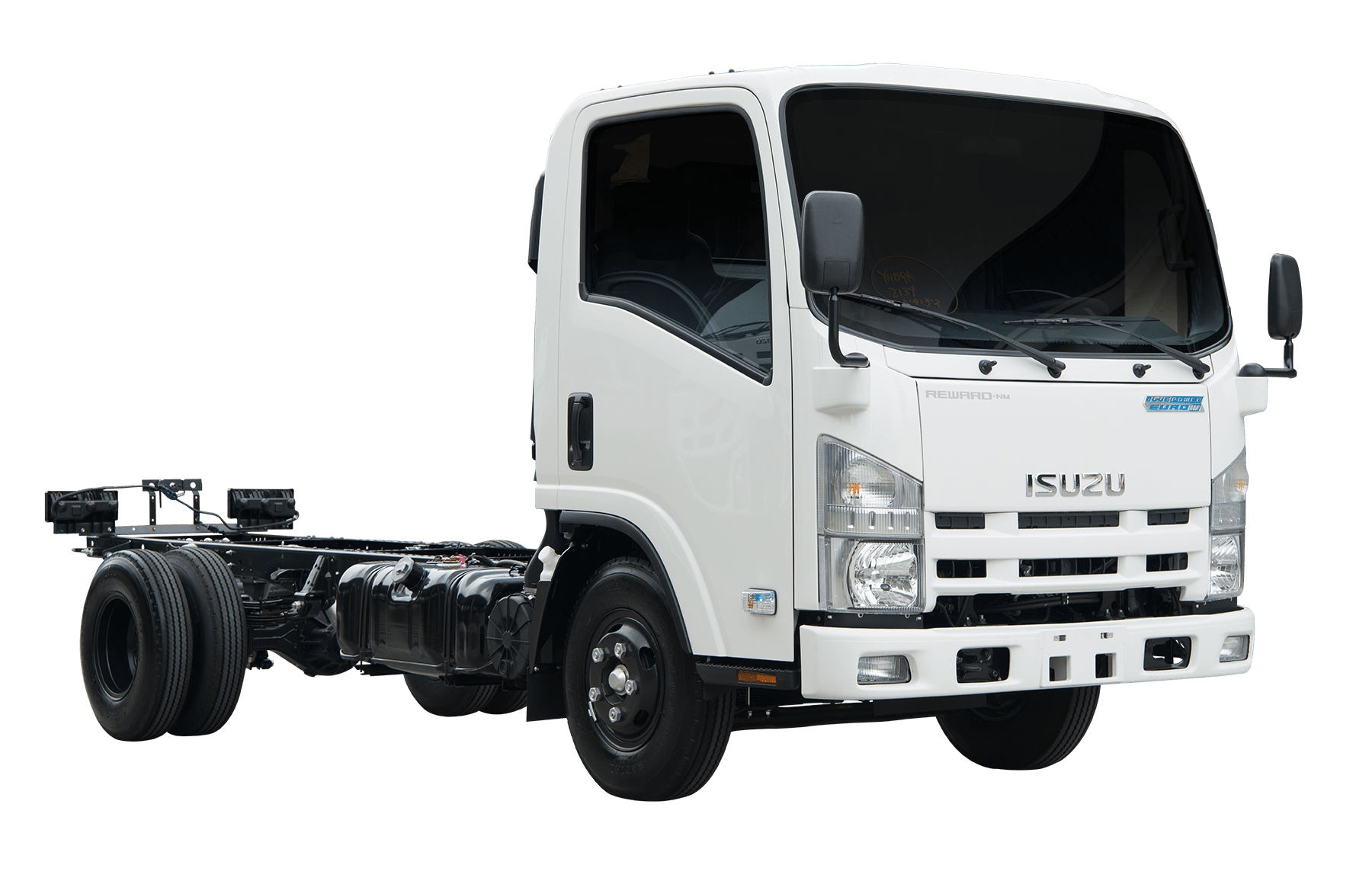

NMR85H (6-wheeler)
| GVW | 4,490 kg. |
| Engine | 4JJ1-TCC |
| Max. Output | 91 KW (124.0 PS) / 2,600 rpm |
| Max. Torque | 354 N-m (36.0 kg-m) / 1,500 rpm |
| Rear Body Length | 14 ft. |

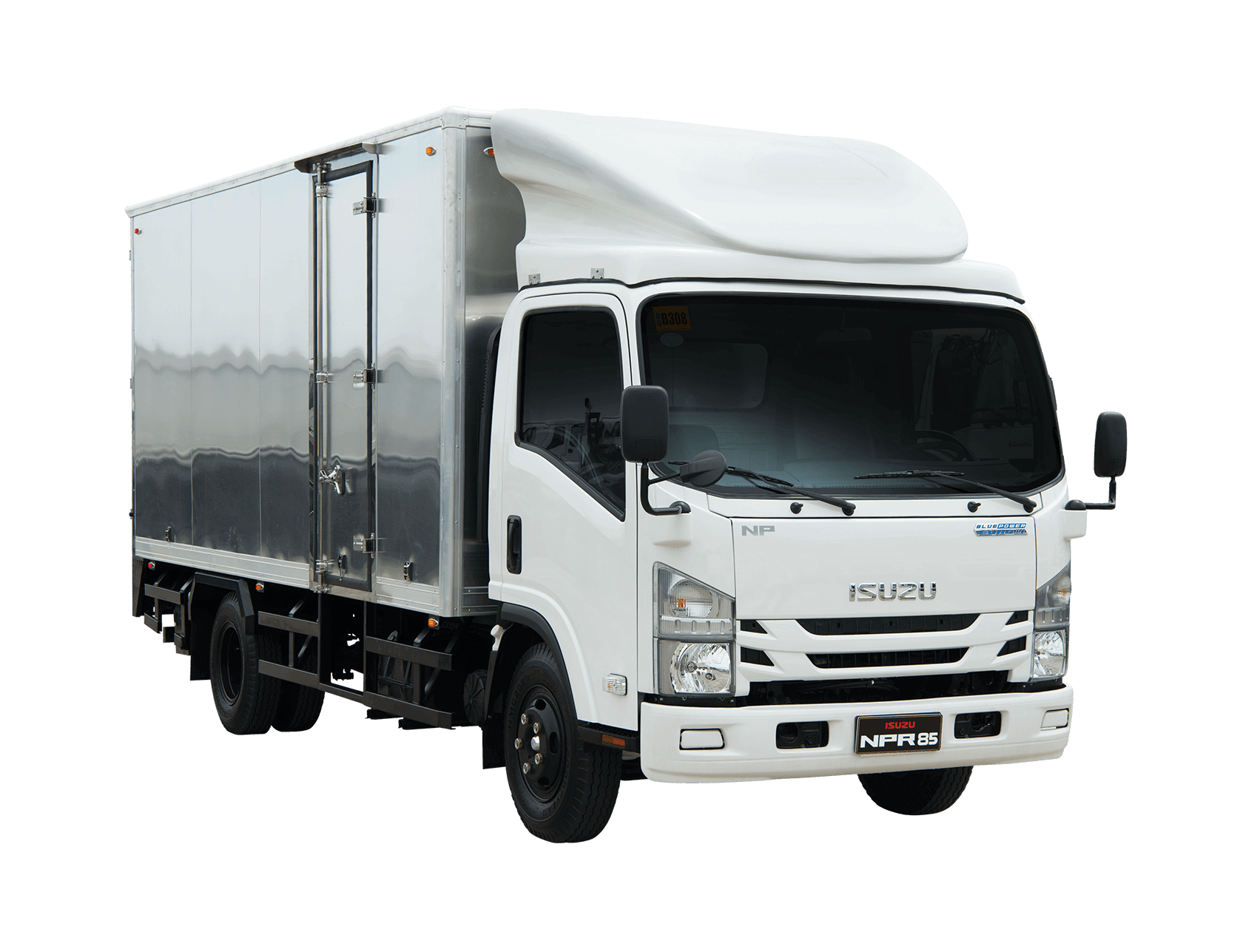

NPR85K (6-wheeler)
| GVW | 6,500 kg. |
| Engine | 4JJ1-TCC |
| Max. Output | 91 KW (124.0 PS) / 2,600 rpm |
| Max. Torque | 354 N-m (36.0 kg-m) / 1,500 rpm |
| Rear Body Length | 16 ft. |

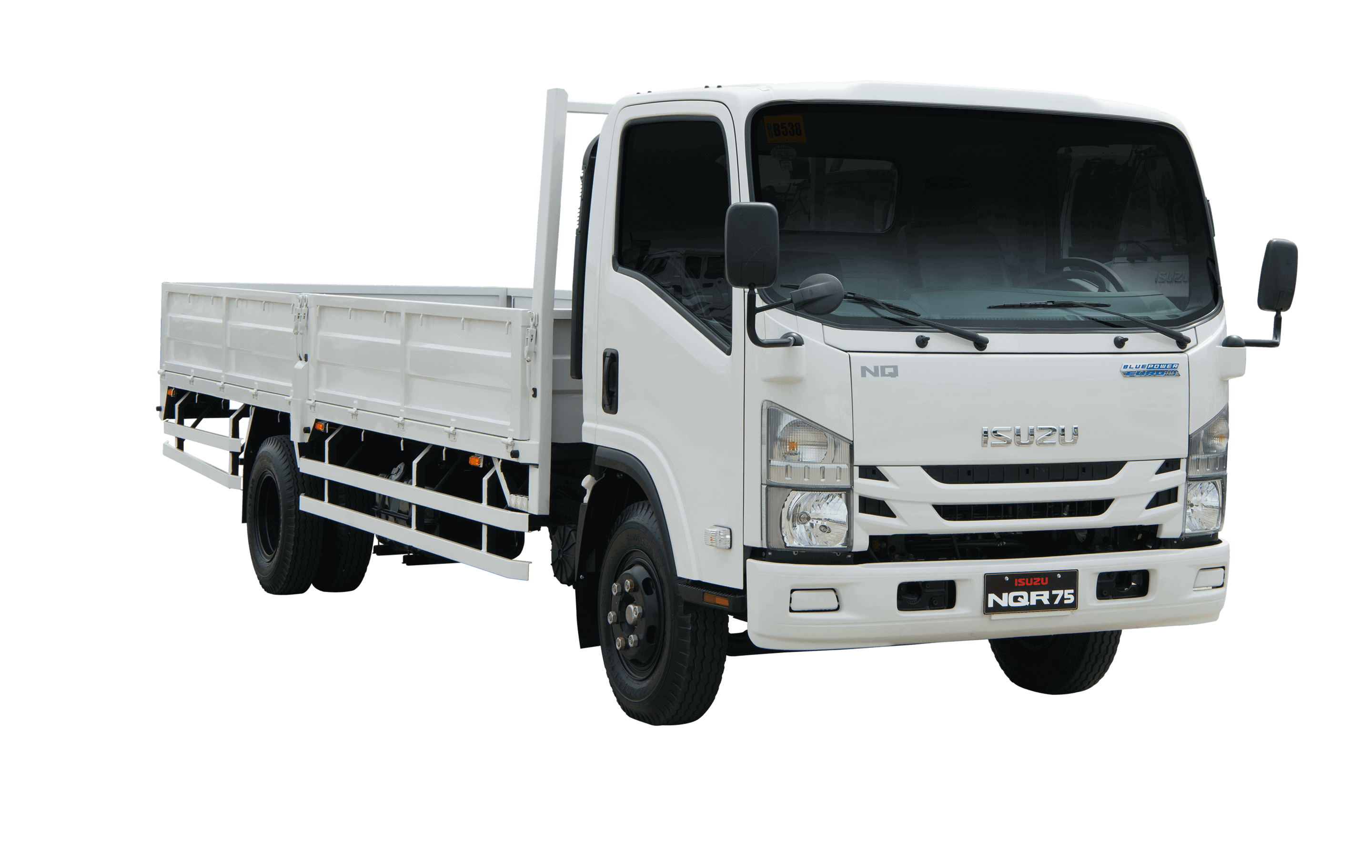

NQR75L (6-wheeler)
| GVW | 8,500 kg. |
| Engine | 4HK1-TCN |
| Max. Output | 114 KW (155.0 PS) / 2,600 rpm |
| Max. Torque | 419 N-m (42.0 kg-m) / 1,600 - 2,600 rpm |
| Rear Body Length | 18 ft. |
*Prices / Specifications may change without prior notice.
*Shipping and handling charges not included (provincial dealerships).
*Photo and Specifications may vary from actual unit.
*SRP does not include rear truck body.
*Prices of trucks are for cab and chassis only.
*Warranty coverage for N-SERIES is 36 months / unlimited mileage.
*Warranty coverage for Q-SERIES is 36 months or 150,000 kilometers, whichever comes first.
ISUZU NLR85ES SMOOTHER FEATURES
EASY TO DRIVE
AUTOMATED MANUAL TRANSMISSION (AMT) MAKES DRIVING EASIER & LESS STRESSFUL
2-PEDAL OPERATION
ECONOMICAL
ENERGY-EFFICIENT TRANSMISSION SYSTEM (MYY6S SMOOTHER)
LESS FUEL CONSUMPTION WITH ECO MODE
SAFE
DECREASED DRIVER FATIGUE WITH AMT & COMFORTABLE VINYL RECLINABLE SEAT
CAB TILT WARNING INDICATOR
SPECIFICATIONS
ENGINE
TRANSMISSION
| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | MSB5S | MYY5M | MYY6S (Automated Manual Transmission) | MYY5M | MYY6S | ||||||||||||
| Final Gear Ratio | 4.875 | 5.125 | 4.300 | 5.857 | 5.571 | ||||||||||||
TIRE AND WHEEL
| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Tire | 7.50-15-12PR | 7.00-15-12PR | 7.50-16-12PR | 7.50-16-14PR | |||||||||||||
| Number of Tires | 5 (Five) Including spare tire | 7 (Seven Including spare tire) | |||||||||||||||
BRAKE
| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Service | Drum Type, Vacuum | Drum Type, Hydraulic | |||||||||||||||
| Auxiliary | - | Exhaust Brake | |||||||||||||||
| Parking | Center Brake | ||||||||||||||||
SUSPENSION
| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Front and Rear | Multi-Leaf Spring | ||||||||||||||||
ELECTRICAL SYSTEM
| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Battery | 95D31Lx1 | 65D23Lx2 | 80D26Lx2 | 65D23Lx2 | 80D26Lx2 | ||||||||||||
| Alternator | 12V-80A | 12V-60A | 24V-90A | ||||||||||||||
CONVENIENCE
| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Audio | Tuner Radio with USB, 2 Speakers | ||||||||||||||||
| USB Charger Port | - | Equipped | |||||||||||||||
| Air-Conditioning System | Optional | ||||||||||||||||
| Cab Window | Manual | Power Window | |||||||||||||||
| Cab Door | Manual | Central Door Lock | |||||||||||||||
| Cab Tilting Buzzer | - | Equipped | |||||||||||||||
| Reverse Warning Buzzer | Equipped | ||||||||||||||||
DIMENSIONS (mm)
| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OAL | 4,675 | 6,020 | 4,730 | 6,020 | 6,635 | 7,355 | |||||||||||
| OAH | 2,190 | 2,255 | 2,310 | ||||||||||||||
| WB | 2,490 | 3,345 | 2,475 | 3,345 | 3,815 | 4,175 | |||||||||||
| FOH | 1,095 | 1,110 | |||||||||||||||
| ROH | 1,090 | 1,565 | 1,145 | 1,565 | 1,710 | 2,070 | |||||||||||
| CE | 3,117 | 4,457 | 3,167 | 4,457 | 4,952 | 5,672 | |||||||||||
| CA | 2,027 | 2,892 | 2,022 | 2,892 | 3,242 | 3,602 | |||||||||||
| OW | 1,815 | 2,040 | |||||||||||||||
| BW | 1,605 | 1,855 | 2,115 | ||||||||||||||
| CW | 1,395 | 1,425 | 1,650 | ||||||||||||||
WEIGHTS (kg)
| QLR77E NON-TILT | QLR77E TILT | NLR77H | NLR85E | NLR85ES SMOOTHER | NMR85H | NPR85K | NQR75L | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GVW Ratings | 4,200 | 4,490 | 6,500 | 8,500 | |||||||||||||
| Cab and Chassis Mass | 1,755 | 1,770 | 1,860 | 1,850 | 1,880 | 2,070 | 2,395 | 2,760 | |||||||||
| Front | 1,285 | 1,300 | 1,325 | 1,340 | 1,360 | 1,460 | 1,575 | 1,745 | |||||||||
| Rear | 470 | 535 | 510 | 520 | 610 | 820 | 1,015 | ||||||||||
| Payload | 2,445 | 2,430 | 2,630 | 2,640 | 2,610 | 2,420 | 4,105 | 5,740 | |||||||||
