Isuzu F-Series Medium Duty Truck

Moving Towards Progress

ISUZU F-SERIES RIGID TRUCK MODELS

FRR90MS (6-wheeler)

GVW	10,600 kg.
Engine	4HK1-TCC
Max. Output	140 KW (190.0 PS) / 2,600 rpm
Max. Torque	510 N-m (52.0 kg-m) / 2,600 rpm
Rear Body Length	20 ft.

FVR34QS (6-wheeler)

GVW	16,000 kg.
Engine	6HK1-TCN
Max. Output	177 KW (240.0 PS) / 2,400 rpm
Max. Torque	706 N-m (72.0 kg-m) / 1,450 rpm
Rear Body Length	24 ft.

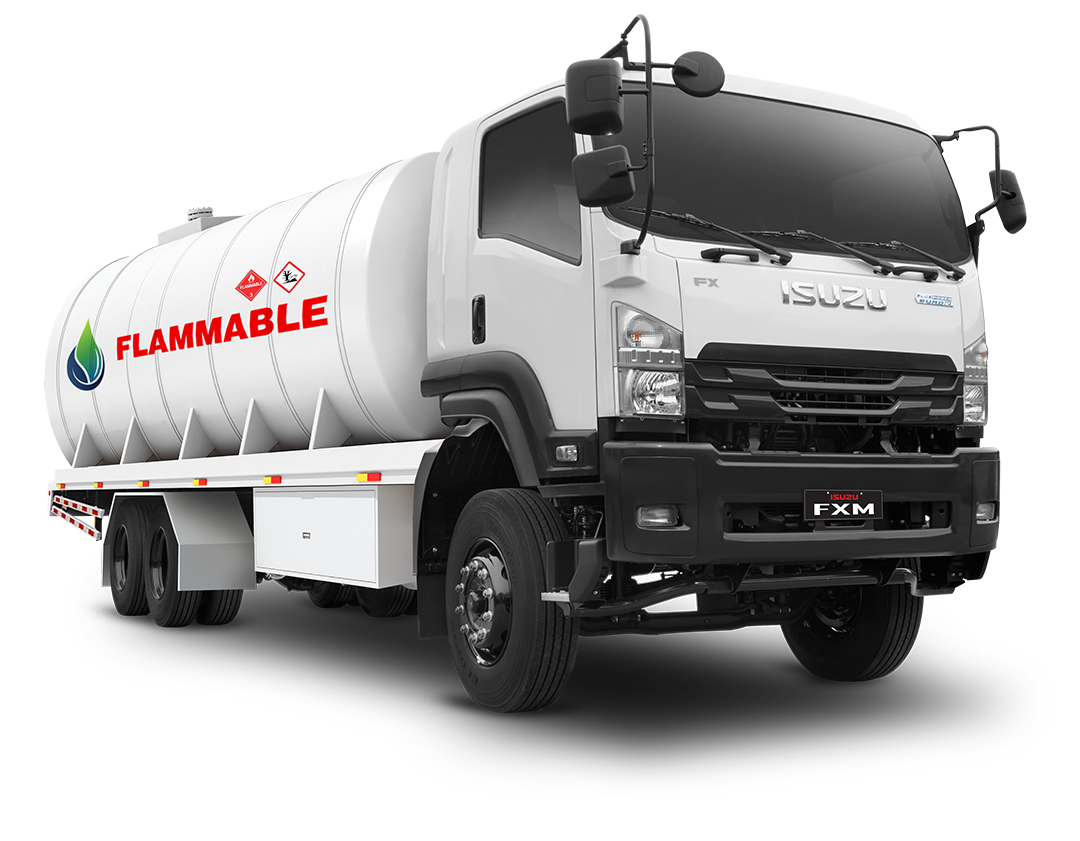

FXM60 W

GVW	28,000 kg
Engine	6NX1-TCS
Max. Output	254 KW (345 PS) / 2,000 rpm
Max. Torque	1,324 N-m (135.0 kg-m) / 1,300 rpm
Rear Body Length	32 ft.

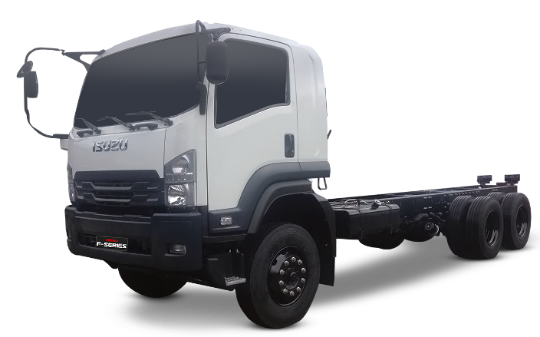

FVM34 T

GVW	26,000 kg
Engine	6HK1-TCS
Max. Output	206 KW (280.0 PS) / 2,400 rpm
Max. Torque	882 N-m (90.0 kg-m) / 1,450 rpm
Rear Body Length	25 ft.

FVM34 W (Cab Chassis w/ G‐Cargo Wingvan)

GVW	26,000 kg
Engine	6HK1-TCS
Max. Output	206 KW (280.0 PS) / 2,400 rpm
Max. Torque	882 N-m (90.0 kg-m) / 1,450 rpm
Rear Body Length	32 ft.

FVR34 Q (Cab Chassis)

GVW	16,000 kg
Engine	6HK1-TCN
Max. Output	177 KW (240.0 PS) / 2,400 rpm
Max. Torque	706 N-m (72.0 kg-m) / 1,450 rpm
Rear Body Length	24 ft.

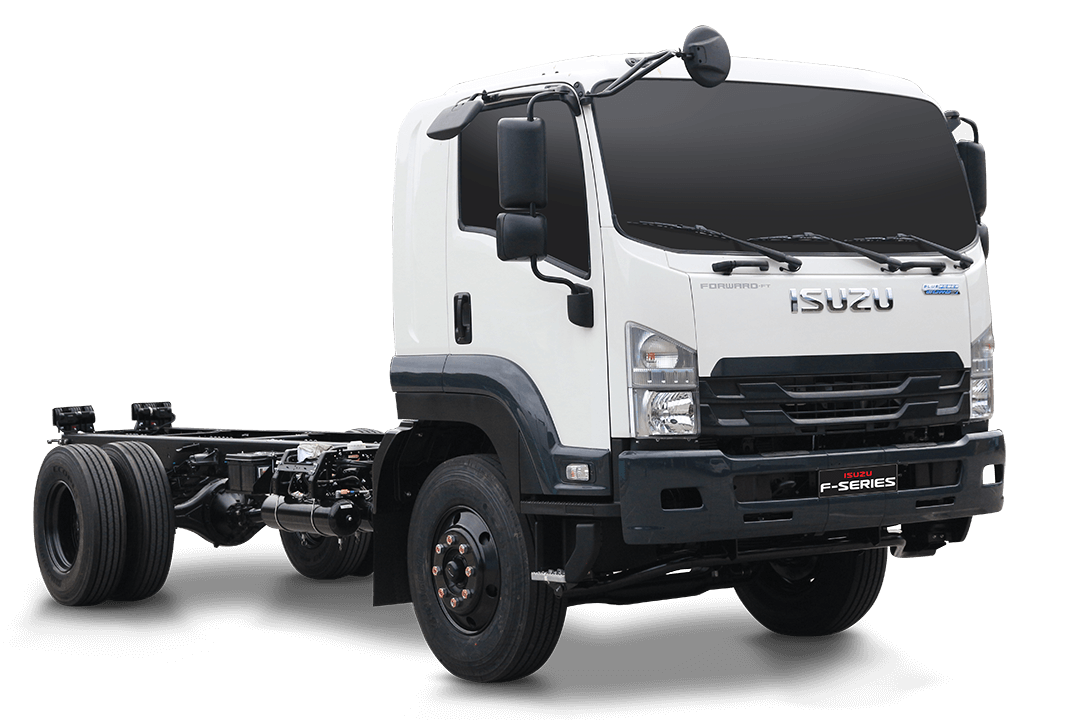

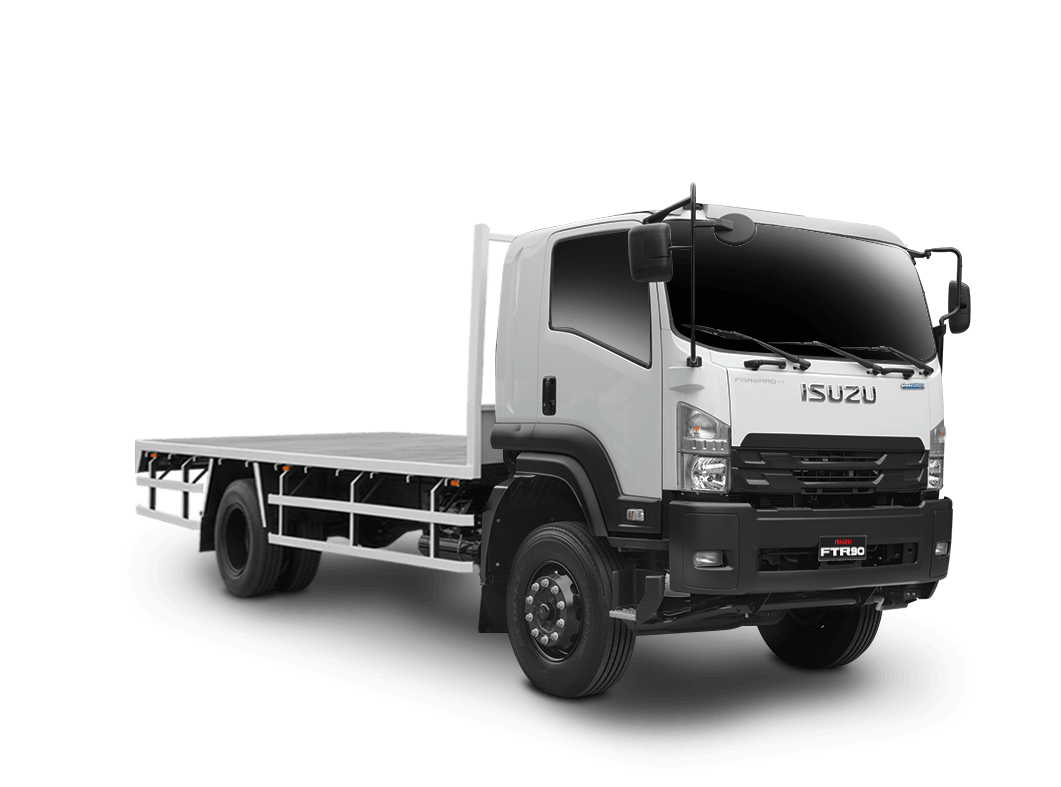

FTR90 M (Cab Chassis)

GVW	14,200 kg
Engine	4HK1-TCS
Max. Output	154 KW (210 PS) / 2,600 rpm
Max. Torque	706 N-m (72.0 kg-m) / 1,600 rpm
Rear Body Length	19 ft.

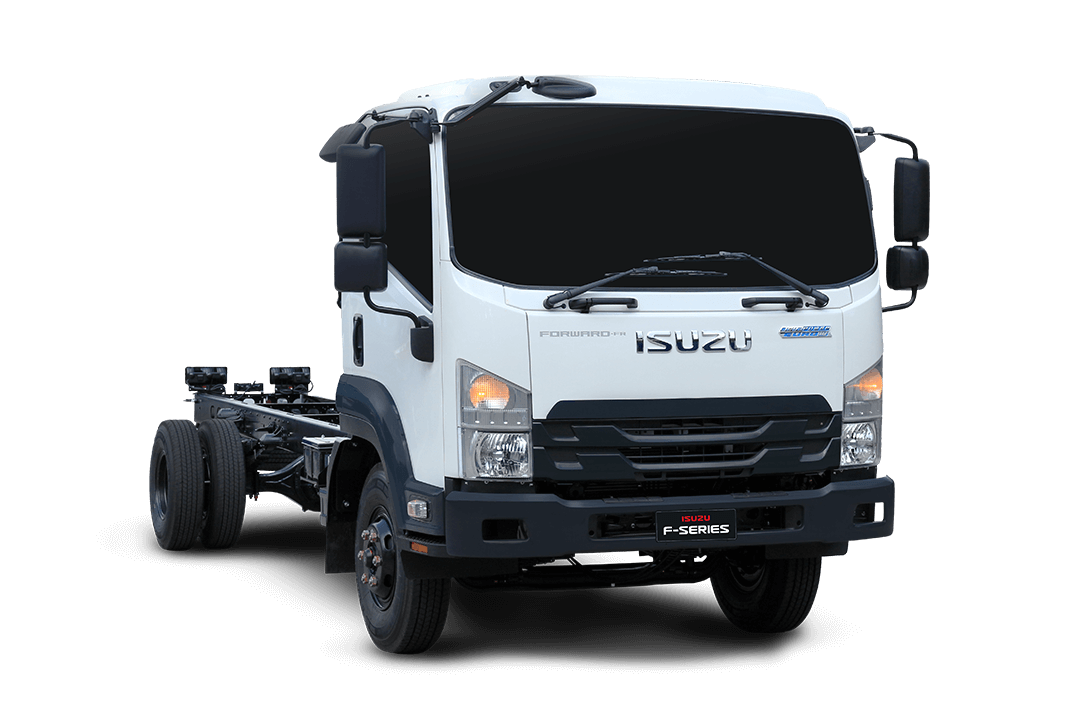

FRR90 M (Cab Chassis)

GVW	10,600 kg
Engine	4HK1-TCC
Max. Output	140 KW (190.0 PS) / 2,600 rpm
Max. Torque	510 N-m (52.0 kg-m) / 1,600 - 2,600 rpm
Rear Body Length	20 ft.

ISUZU TRACTOR HEAD MODEL

GXZ60 N Tractor Head

GCM	50,500 kg
GVW	26,000 kg
Engine	6NX1-TCS
Max. Output	254 KW (345 PS) / 2,000 rpm
Max. Torque	1,324 N-m (135.0 kg-m) / 1,300 rpm

Ask for a Quotation

Digital Dealer

*Prices / Specifications may change without prior notice.

*Shipping and handling charges not included (provincial dealerships).

*Photo and Specifications may vary from actual unit.

*SRP does not include rear truck body.

*Prices of trucks are for cab and chassis only.

*Warranty coverage for F-SERIES and G-SERIES is 24 months or 50,000 kilometers, whichever comes first.

Isuzu F-Series Highlights

ISUZU F-SERIES FEATURES

EURO IV COMPLIANT BLUE POWER DIESEL ENGINE

REINFORCED CHASSIS FRAME

HIGHLY RIGID CAB

NEW FRONT GRILLE DESIGN

HIGH AXLE CAPACITY

EASY ENGINE ACCESS

EASY INGRESS AND EGRESS

SPACIOUS CAB INTERIOR

SPECIFICATIONS

ENGINE

	FRR90M	FRR90MS SMOOTHER	FTR90M	FVR34Q	FVR34QS SMOOTHER	FVM34T	FVM34W	FXM60W
Model	4HK1-TCC		4HK1-TCS	6HK1-TCN		6HK1-TCS		6NX1-TCS
Type	4-Cylinder, Turbo-Intercooler, Common-Rail Direct Injection, Blue Power Diesel Engine			6-Cylinder, In-Line, Common-Rail Direct Injection, Blue Power Diesel Engine
Emission Regulation	Euro IV	Euro V	Euro IV		Euro V	Euro IV		Euro V
Bore and Stroke (mm)	Ø 115 X 125
Displacement (cc)	5,193			7,790
Max. Output KW (PS)/rpm (ISO Gross)	140 (190) / 2,600		154 (210) / 2,600	177 (240) / 2,400		205 (280) / 2,400		254 (345) / 2,000
Max. Torque N-m (kg-m)/rpm (ISO Gross)	510 (52) / 1,600 - 2,600		706 (72) / 1,600	706 (72) / 1,450		883 (90) / 1,450		1,324(135) / 1,300
Fuel Tank Capacity (Liter)	200 L						370 L

TRANSMISSION

	FRR90M	FRR90MS SMOOTHER	FTR90M	FVR34Q	FVR34QS SMOOTHER	FVM34T	FXM60W	GXZ60N (TRACTOR)
Model	MZZ6W 6-speed MT	MZZ6N 6-speed AMT	MZW6P 6-speed MT		MZW6P 6-speed AMT	EATON ES11109,DD 9-speed	MEB9 9-speed
Clutch Air Assist	Equipped	-	Equipped		-	Equipped
Final Gear Ratio	5.125		6.5	6.17		4.556	5.429	6.143

TIRE & WHEEL

		FRR90M	FRR90MS SMOOTHER	FTR90M	FTR90S	FVR34Q	FVR34QS SMOOTHER	FVM34T	FVM34W	FXM60W	GXZ60N (TRACTOR)
Tires		8.25R16-16PR		11R22.5-16PR

BRAKE

	FRR90M	FVR34Q	FXM60W
Service	Drum Type, Air Over Hydraulic	Drum Type, Full Air
Auxiliary	Exhaust Brake		Compression Release Engine Brake
Parking	Center Brake	Wheel Park

SUSPENSION

		FRR90M	FRR90MS SMOOTHER	FTR90M	FTR90S	FVR34Q	FVR34QS SMOOTHER	FVM34T	FVM34W	FXM60W	GXZ60N (TRACTOR)
Front & Rear		Multi-Leaf Spring

ELECTRICAL SYSTEM

		FRR90M	FRR90MS SMOOTHER	FTR90M	FTR90S	FVR34Q	FVR34QS SMOOTHER	FVM34T	FVM34W	FXM60W	GXZ60N (TRACTOR)
Battery		65D23L x 2
ACG		24V-50A				24V-60A

SAFETY

	FRR90M	FRR90MS SMOOTHER	FTR90M	FVR34Q	FVR34QS SMOOTHER	FVM34T	FXM60W
Anti-Lock Braking System (ABS)	-			Equipped
Electronic Vehicle Stability Control (EVSC)	-						Equipped
Hill Start Assist (HSA)	-	Equipped	-		Equipped	-

CONVENIENCE

	FRR90M	FXM60W
Air Suspension Driver Seat	-	Equipped
USB Accessory Socket	Equipped
Air-Conditioning System	Dealer Option	Equipped
Cab Window	Power Window; with Auto Down Function (Driver Side)
Cab Door	Central Door Locking
Cab Tilt and Lock	Manual	Automatic
Cab Tilt Lock Warning (Meter Lamp & Buzzer)	Equipped
Reverse Warning Buzzer	Equipped

WEIGHT

	FRR90M	FRR90MS SMOOTHER	FTR90M	FTR90S	FVR34Q	FVR34QS SMOOTHER	FVM34T	FVM34W	FXM60W	GXZ60N (TRACTOR)
Gross Vehicle Weight (kg)	10,600		14,200		16,000		26,000		28,000	26,000
Gross Combination Weight (kg)	-									50,500
Gross Payload (kg)	7,365	7,295	9,820	9,600	10,855	10,835	19,155	18,995	-	-
Cab and Chassis Weight (kg)	3,235	3,305	4,380	4,600	5,145	5,165	6,845	7,005	7565	8,100 *
Front Axle Weight (kg)	2,020	2,080	2,760	2,950	2,985	3,000	3,175	3,255	3,615	3,720
Rear Axle Weight (kg)	1,215	1,225	1,620	1,650	2,160	2,165	3,670	3,750	3,950	4,380

DIMENSIONS

	FRR90M	FTR90M	FTR90S	FVR34Q	FVM34T	FVM34W	FXM60W	GXZ60N (TRACTOR)
Overall Length (OAL) (mm)	7,875	7,955	10,000	9,350	9,600	11,900		6,890
Overall Width (OAW) (mm)	2,200	2,400		2,485
Overall Height (OAH) (mm)	2,540	2,880		2,940			3002	2,980
Wheelbase (WB) (mm)	4,660	4,650	6,050	5,560	6,335	7,195		4,935
Cab-to-End (CE) (mm)	6,149	5,889	7,939	7,289	7,539	9,839		4,799
Cab to Axle (CA) (mm)	4,104	4,024	5,424	4,749	4,839	5,699		3,439
Front Overhang (FOH) (mm)	1,170	1,440		1,250
Rear Overhang (ROH) (mm)	2,045	1,865	2,515	2,540	2,015	3,455		675
Front tread (AW) (mm)	1,790	1,990		2,080	2,055
Body Width (BW) (mm)	2,165	2,395		2,460
Rear tread (CW) (mm)	1,660	1,790		1,850
